BMW M30 Engine Billet Fuel Line Bracket Set of 5

Billet fuel line bracket kit -  to suit 6an, 8an, hardline, braided.

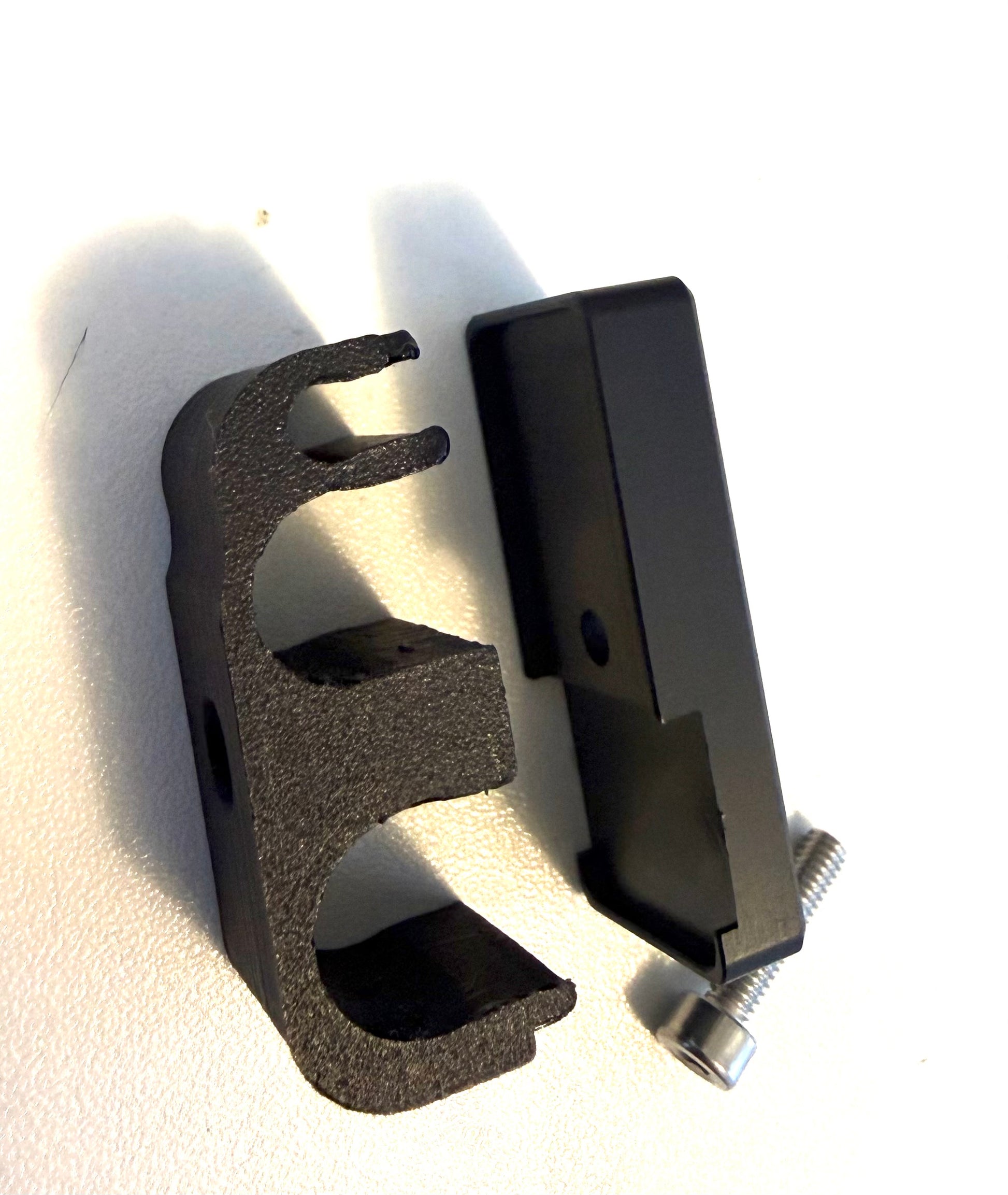

Plastic inserts are 3D printed to suit your exact fuel line sizes. Enter your line sizes at checkout and we'll print the insert to match.

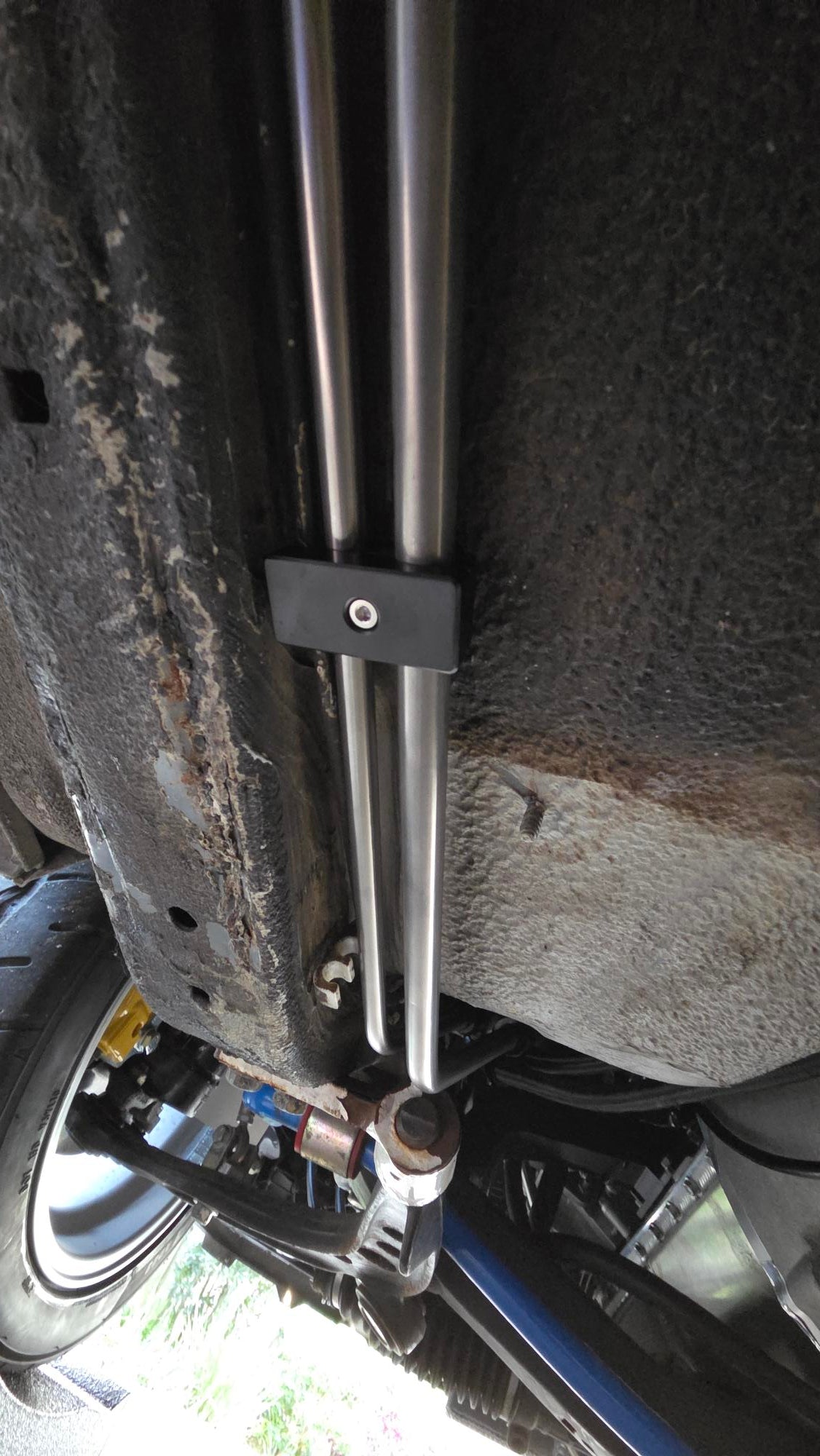

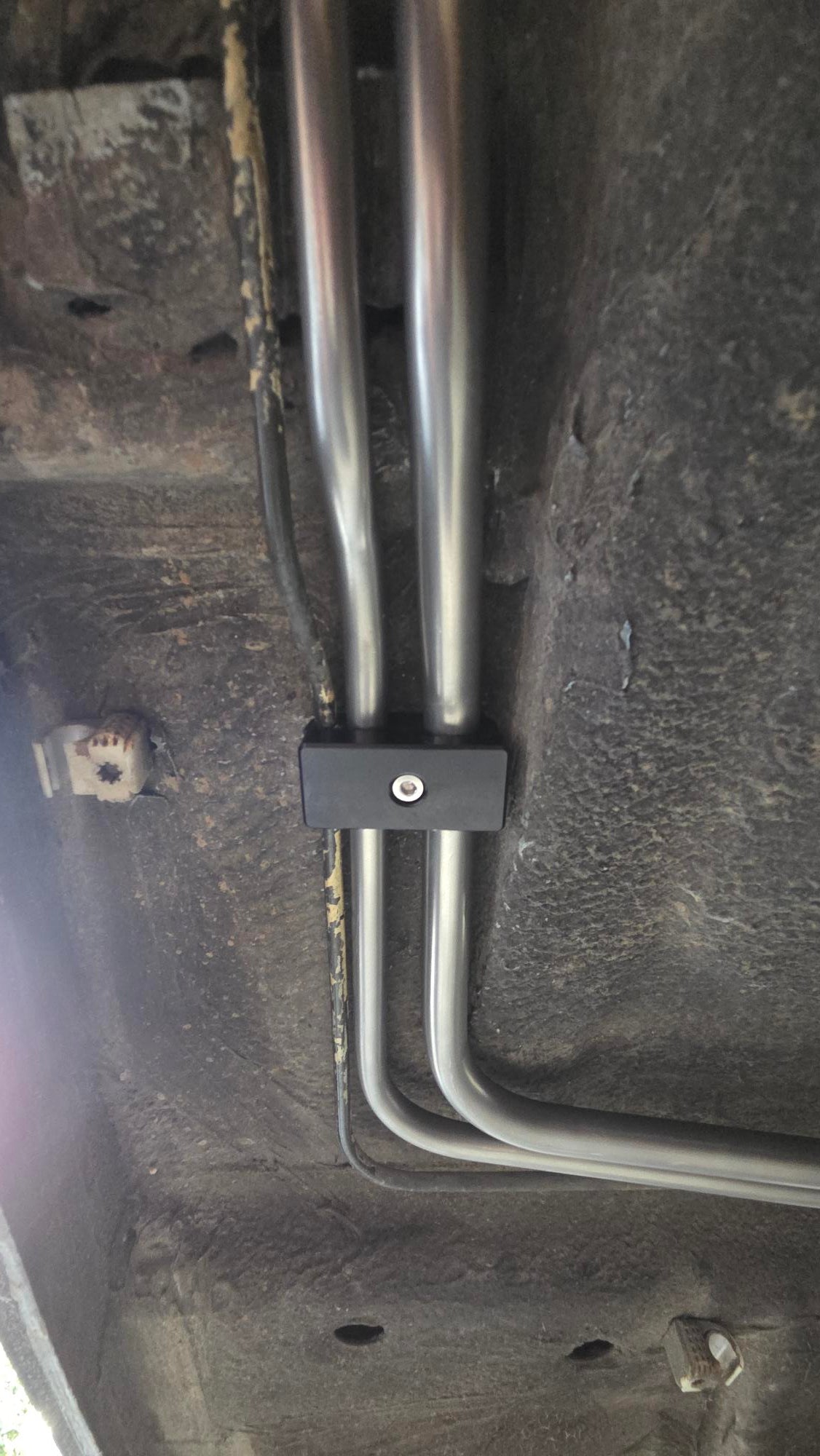

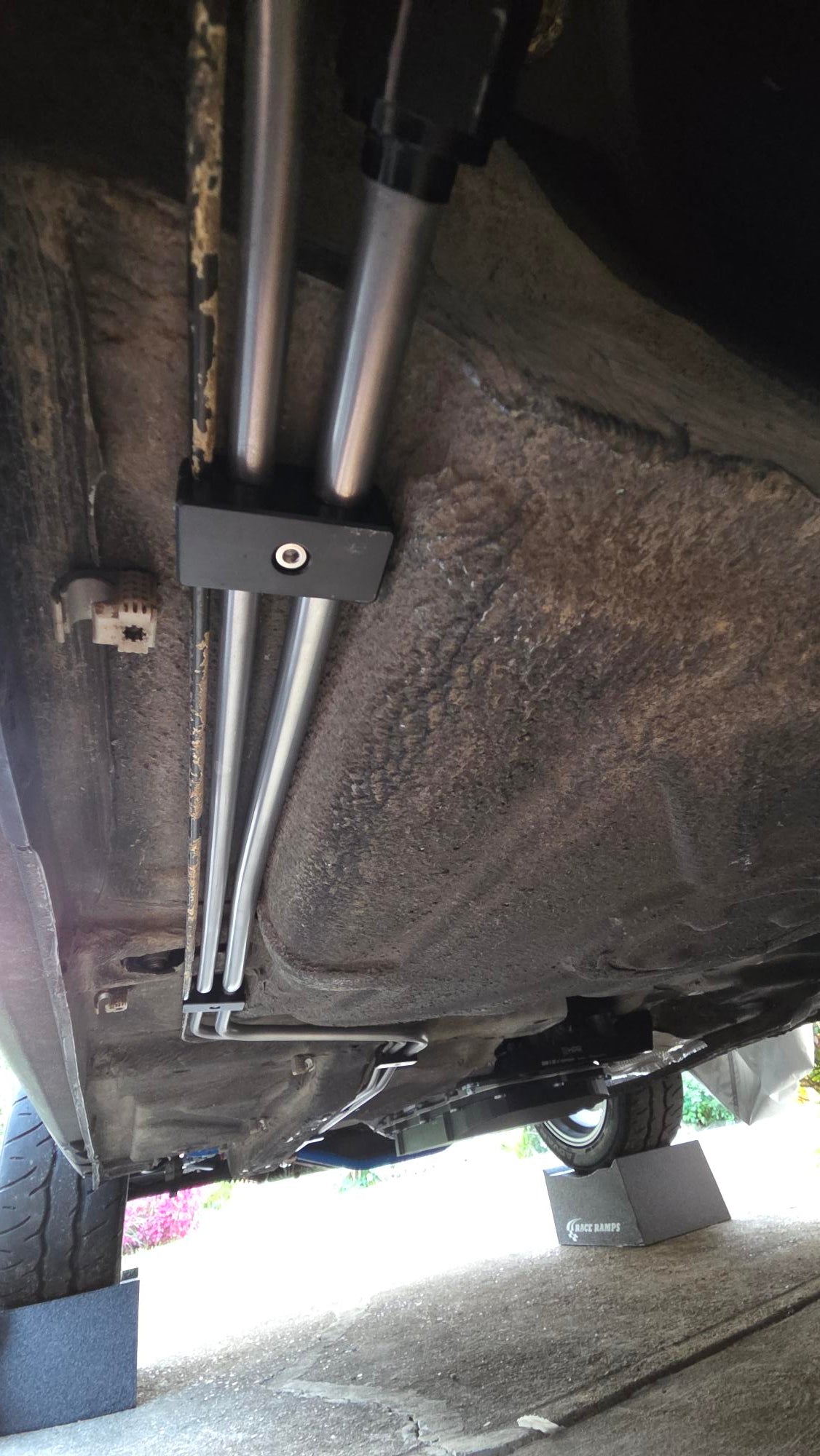

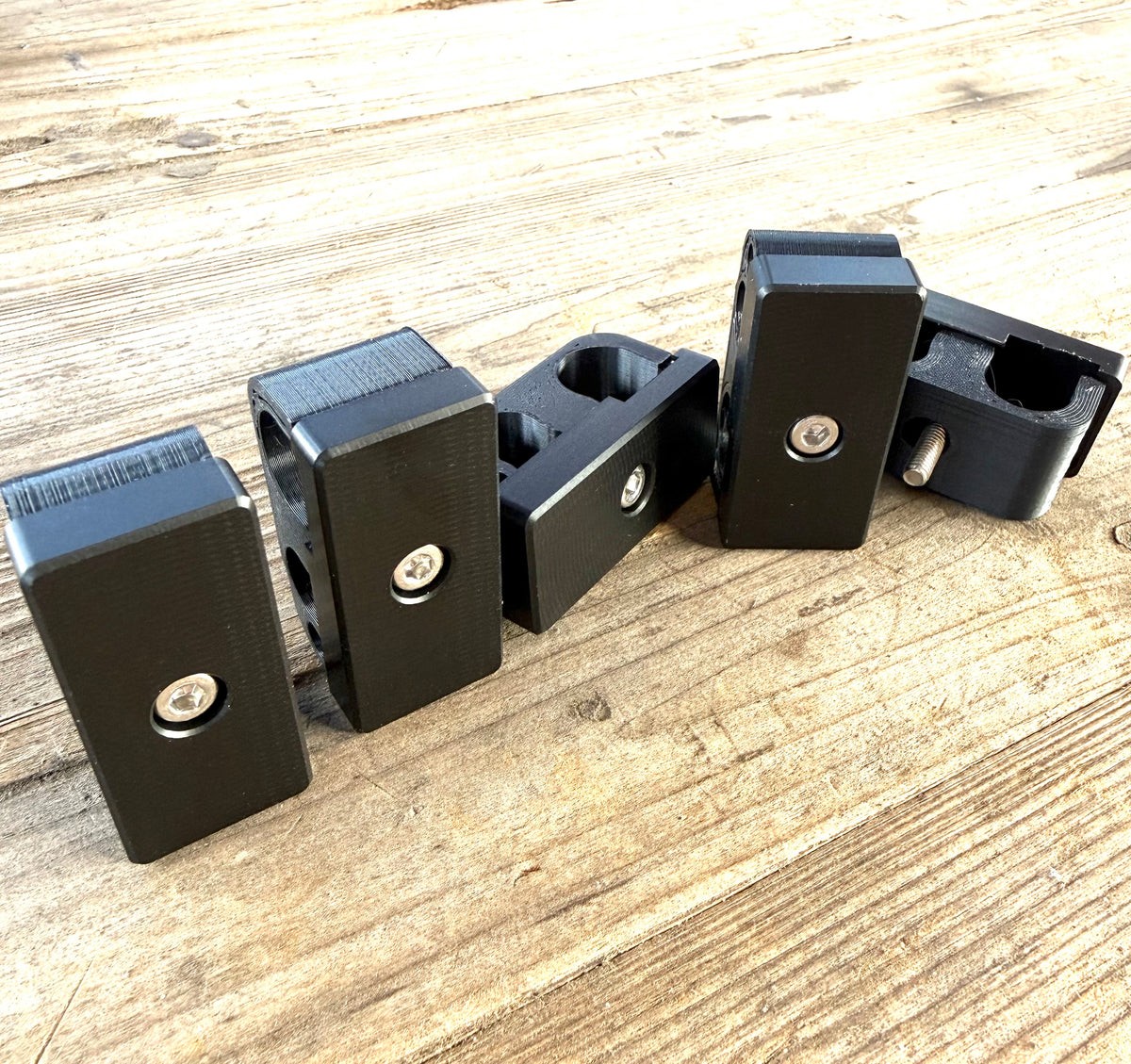

Set of 5 billet fuel line brackets for the BMW M30 engine, direct bolt-on upgrades for the factory brackets using factory mounting locations.

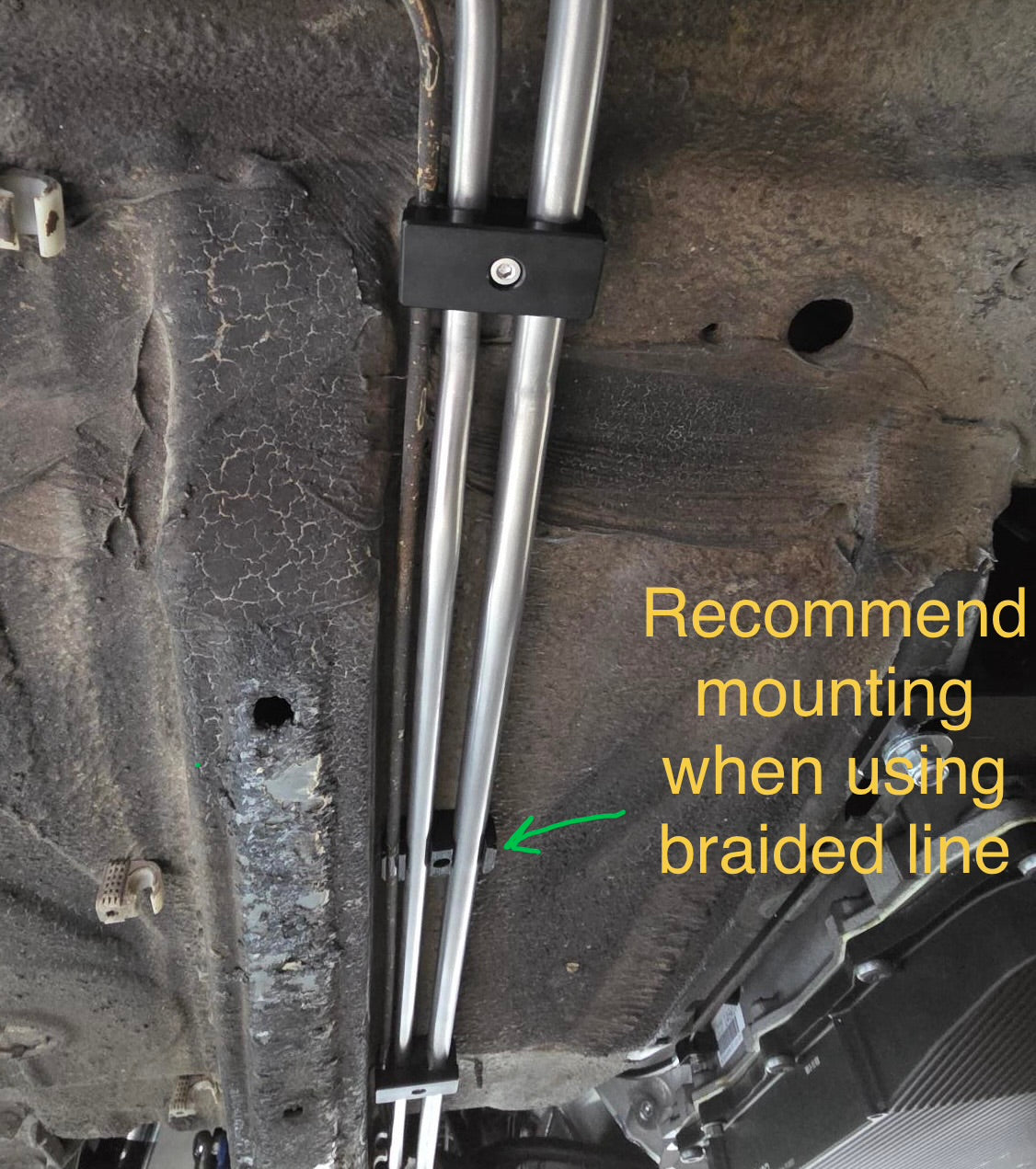

There is a location under the E30 where the OEM mount floats, but we recommend, especially if using braided lines, to mounts this. That is why one bracket is included with an expanding rubber rivet nut. Up to you if you mount it or not.

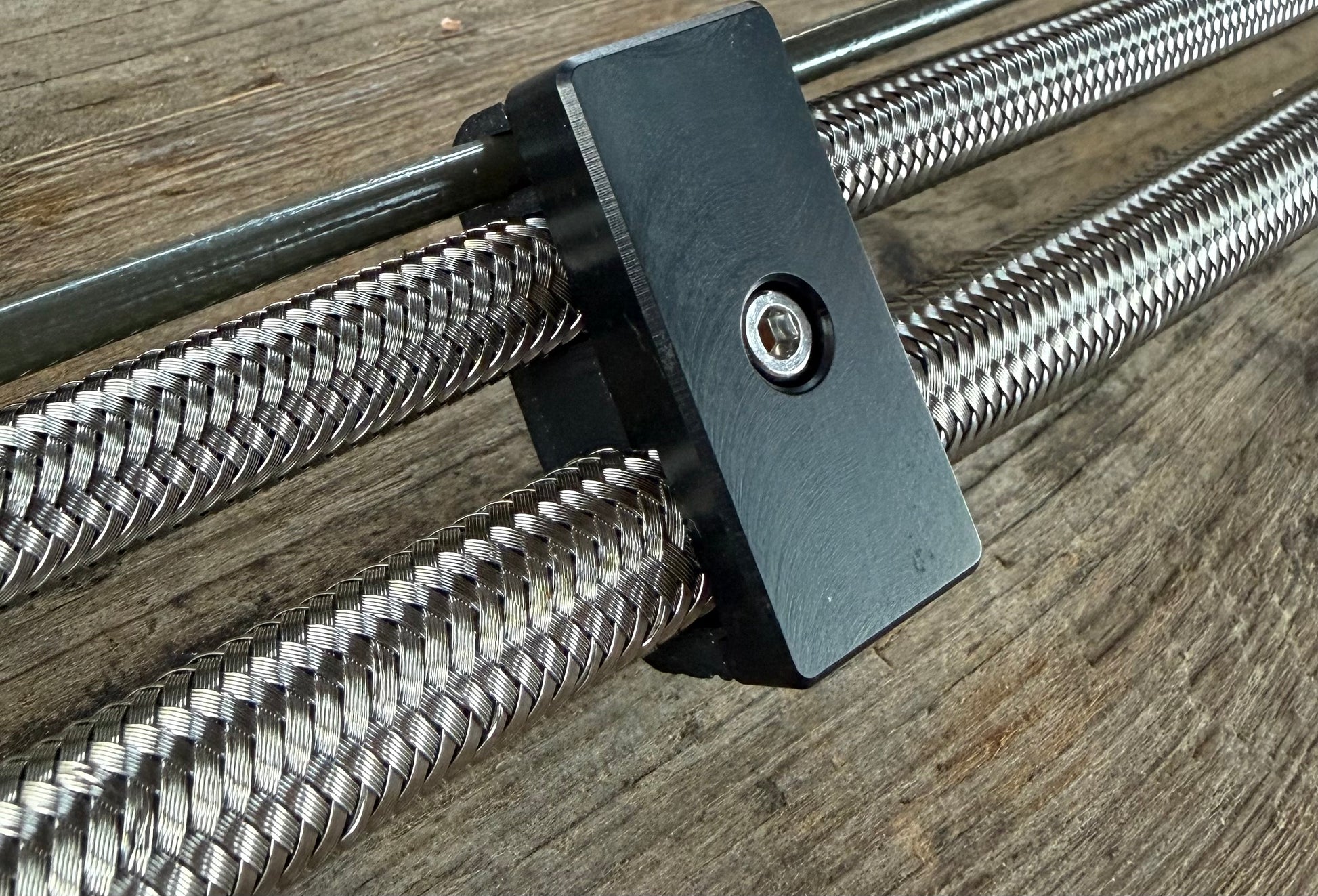

Each bracket holds 3 lines in a fixed order:

• Brake line — fixed size, never changes
• Fuel return — you specify, up to 11.5mm OD
• Fuel feed — you specify, up to 13.8mm OD

Enter your fuel return and fuel feed outside diameters (in 0.1mm increments) in the fields on this page before adding to cart — this is what we use to 3D print your matching insert. If you change your line sizes down the track, replacement inserts can be requested separately.

Here are some common sizes for your reference:

6an hardline 9.53mm, 6an braided Teflon= 11mm, 6an braided rubber 13.8mm.

8an hardline 12.7mm, 8an braided Teflon 13.5mm.

Turnaround is generally within 1 week or less from order confirmation.
