⚠ Please fill in your slot requirements before adding to cart. For OEM lines just write “OEM” as we generally have those sizes on record. For other non-OEM lines we will need the outside diameter please.
Couldn't load pickup availability
CUSTOM MADE TO ORDER — Plastic inserts are machined to suit your specific fuel line sizes. We'll confirm your requirements before manufacturing begins and contact you if we need any further details. Turnaround is generally 1 week from confirmation.
Current turnaround: 7–10 days.

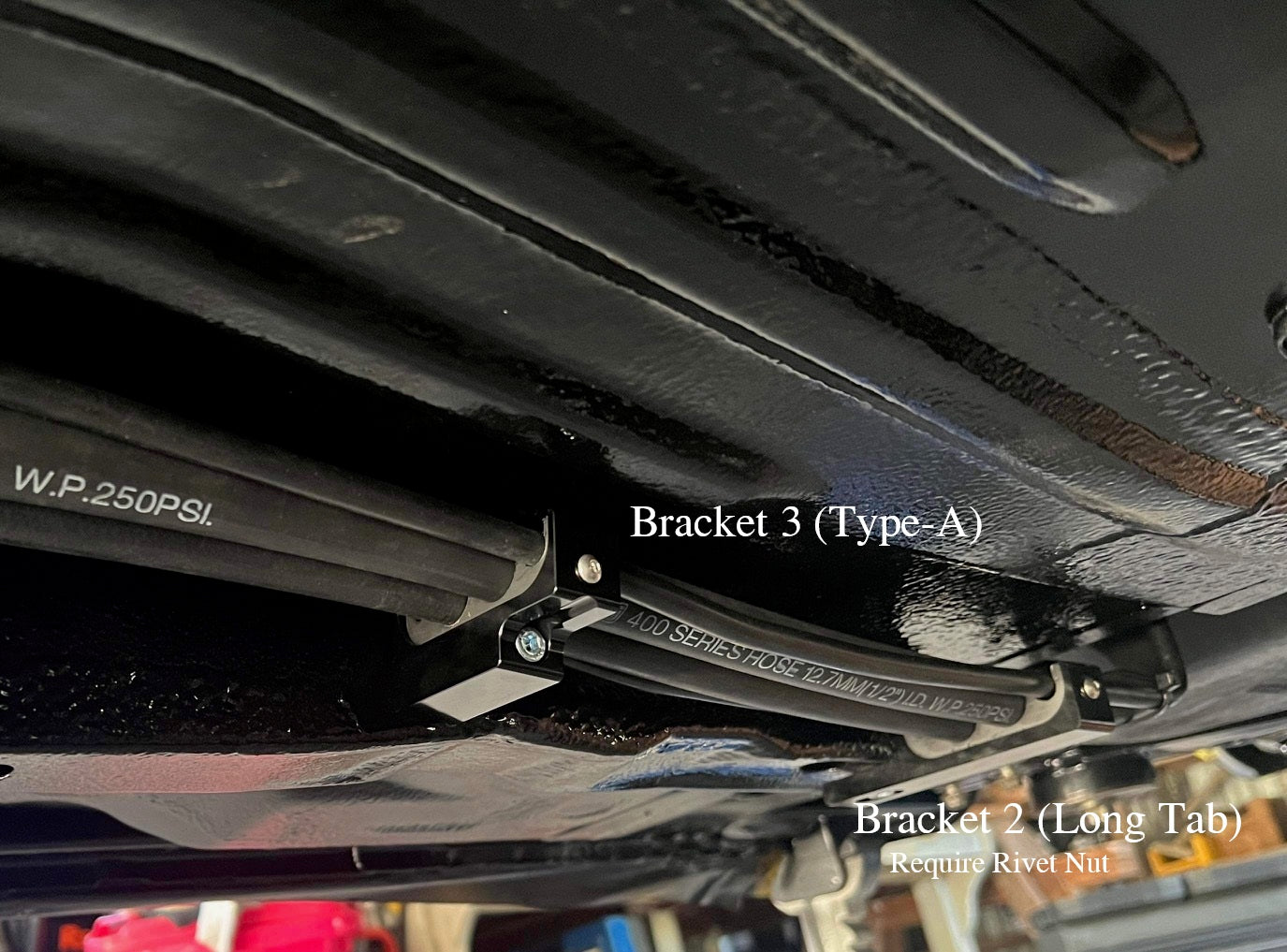

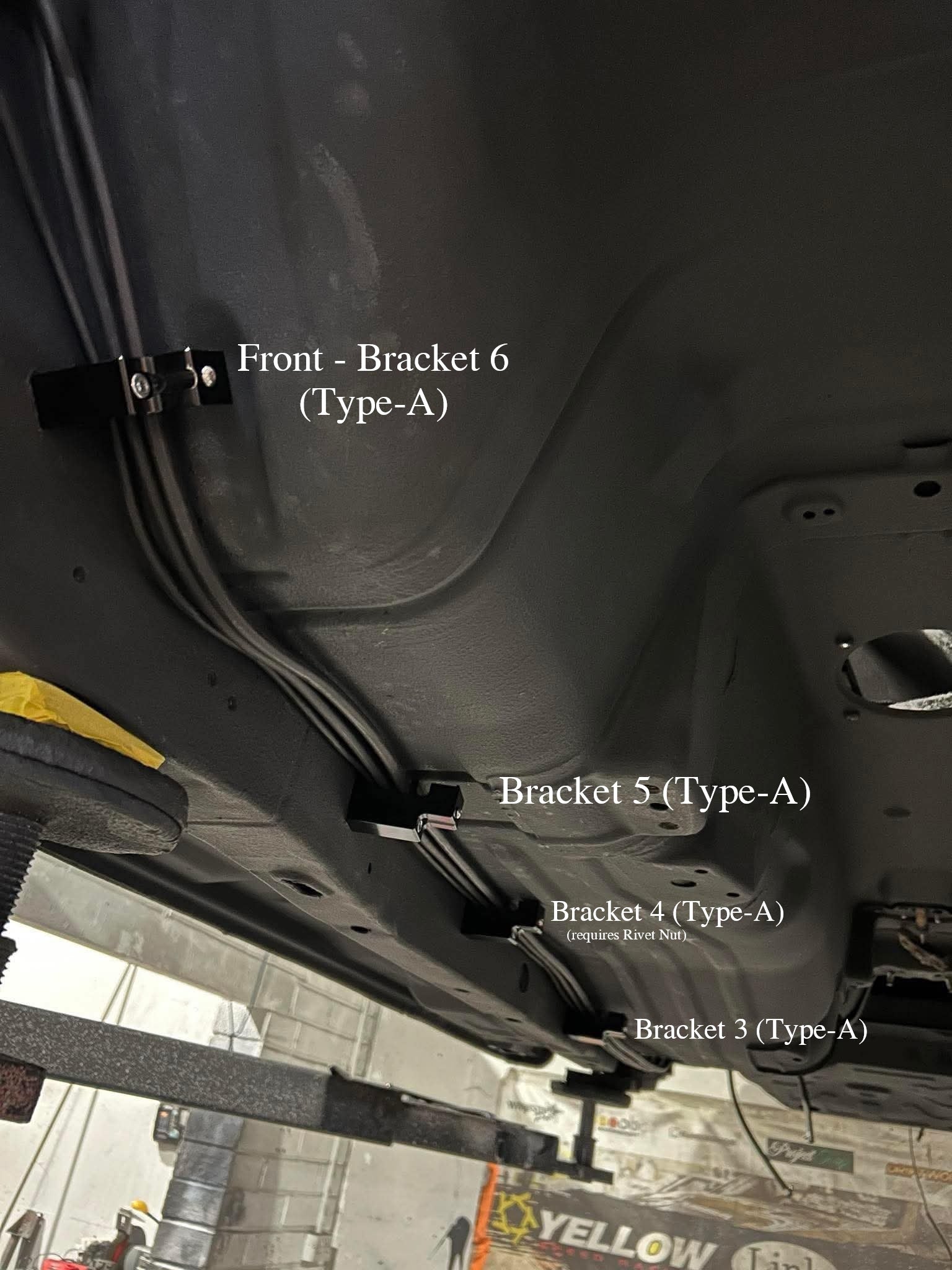

These brackets are direct bolt-on upgrades for the factory brackets. With the exception of Optional Bracket 4, all use factory mounting locations — no drilling and no special tools required. In most cases only Bracket 4 requires a nutsert. Extra nutserts are supplied, as some vehicles have slight variations in OEM thread locations.

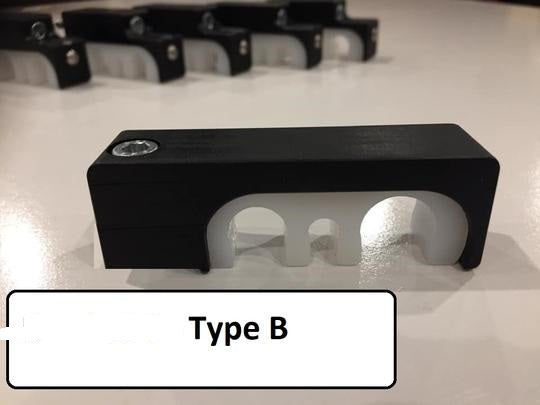

As with the factory brackets, these accommodate the fuel lines, brake line, and fuel vapour line that run under the car. They include plastic inserts which can be custom-made to suit most fuel line sizes. If you change your setup down the track, the plastic inserts are easily replaceable and can be purchased separately.
